BIPV Mounting System

The BIPV mounting solution employs solar modules as the roofing surface, utilizing M-shaped main beams as the primary load-bearing structure that incorporates integrated rainwater collection and drainage functions. Each pair of adjacent modules features transverse drainage channels, complemented by sealing strips to provide dual waterproofing protection, with collected rainwater being directed into the M-profile beams at both ends for discharge. The solar modules are installed atop adjacent M-shaped main beams and secured with clamping fixtures, while protective covers are additionally mounted over the M-beams to minimize rainwater and dust infiltration, preventing foreign matter from entering the M-profile beams and ensuring unimpeded drainage functionality. This integrated design combines structural support with efficient water management in a unified BIPV system.

Material：Zinc Aluminum Magnesium and Aluminum Alloy AL6005-T5

Reference Standards：AS/NZS1170, JISC8955-2017 and other international standards

Installation Locations：Metal sheet roof, concrete flat roof, carport

Maximum Wind Speed：<60m/s

Consult

Detail

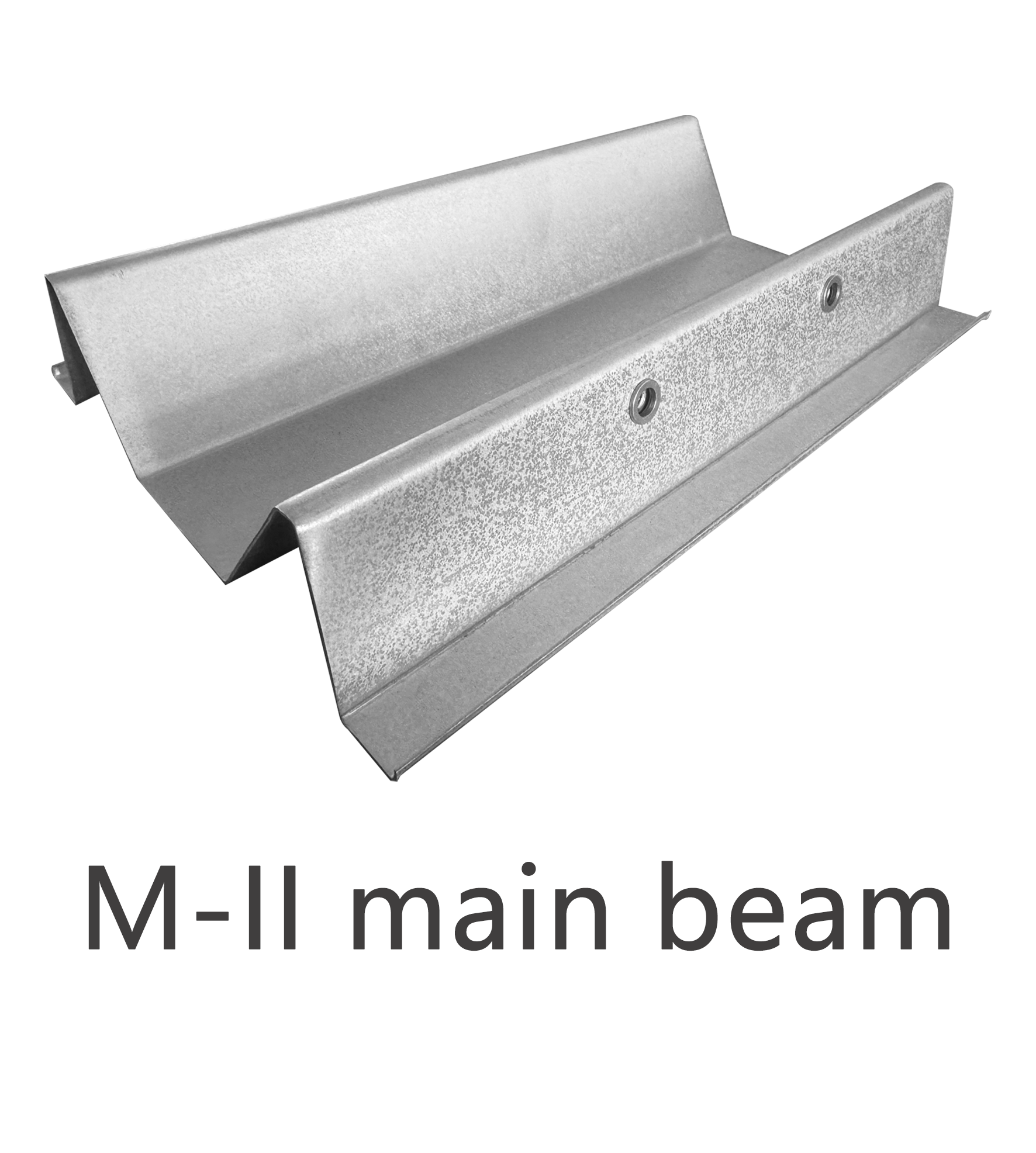

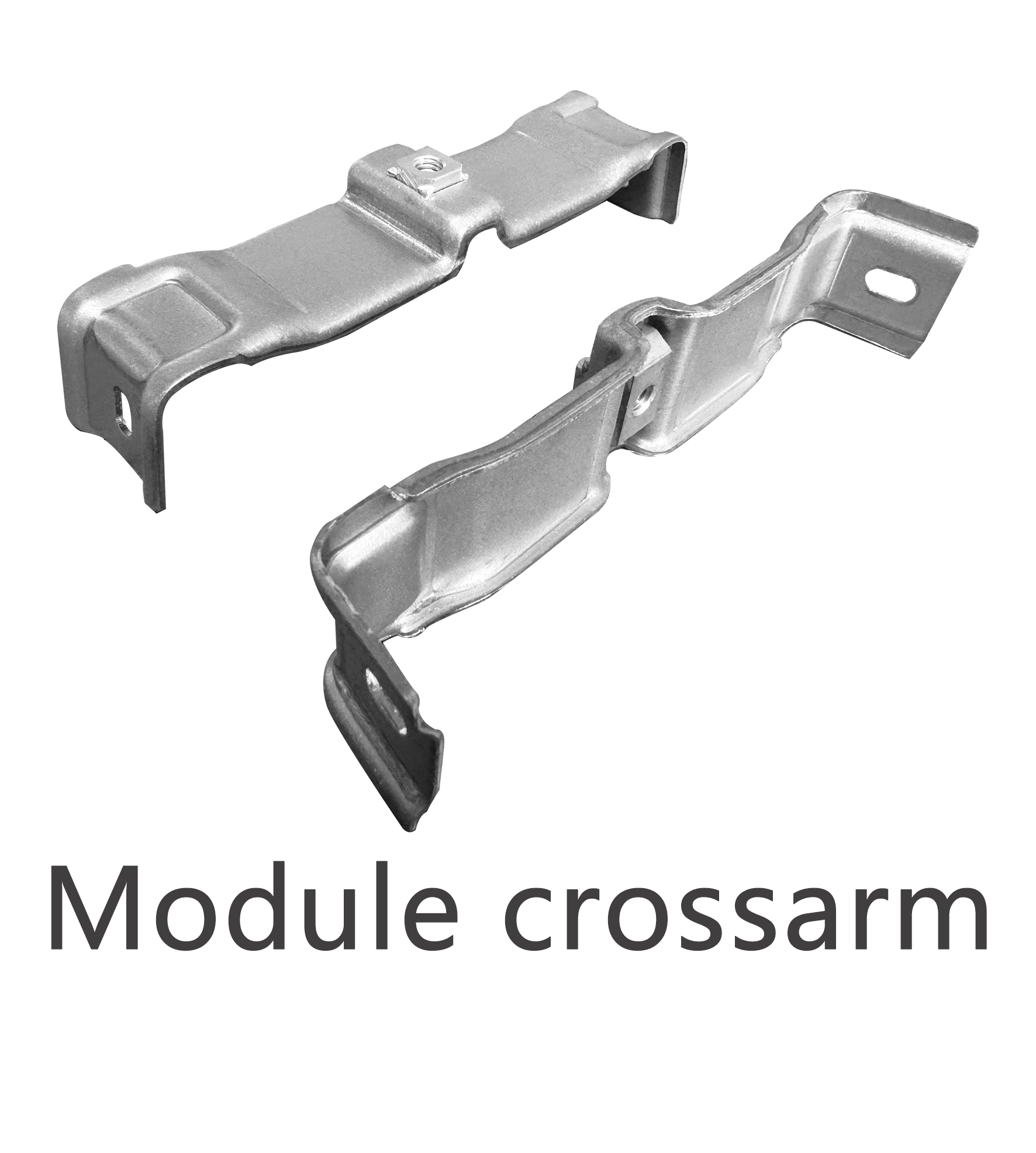

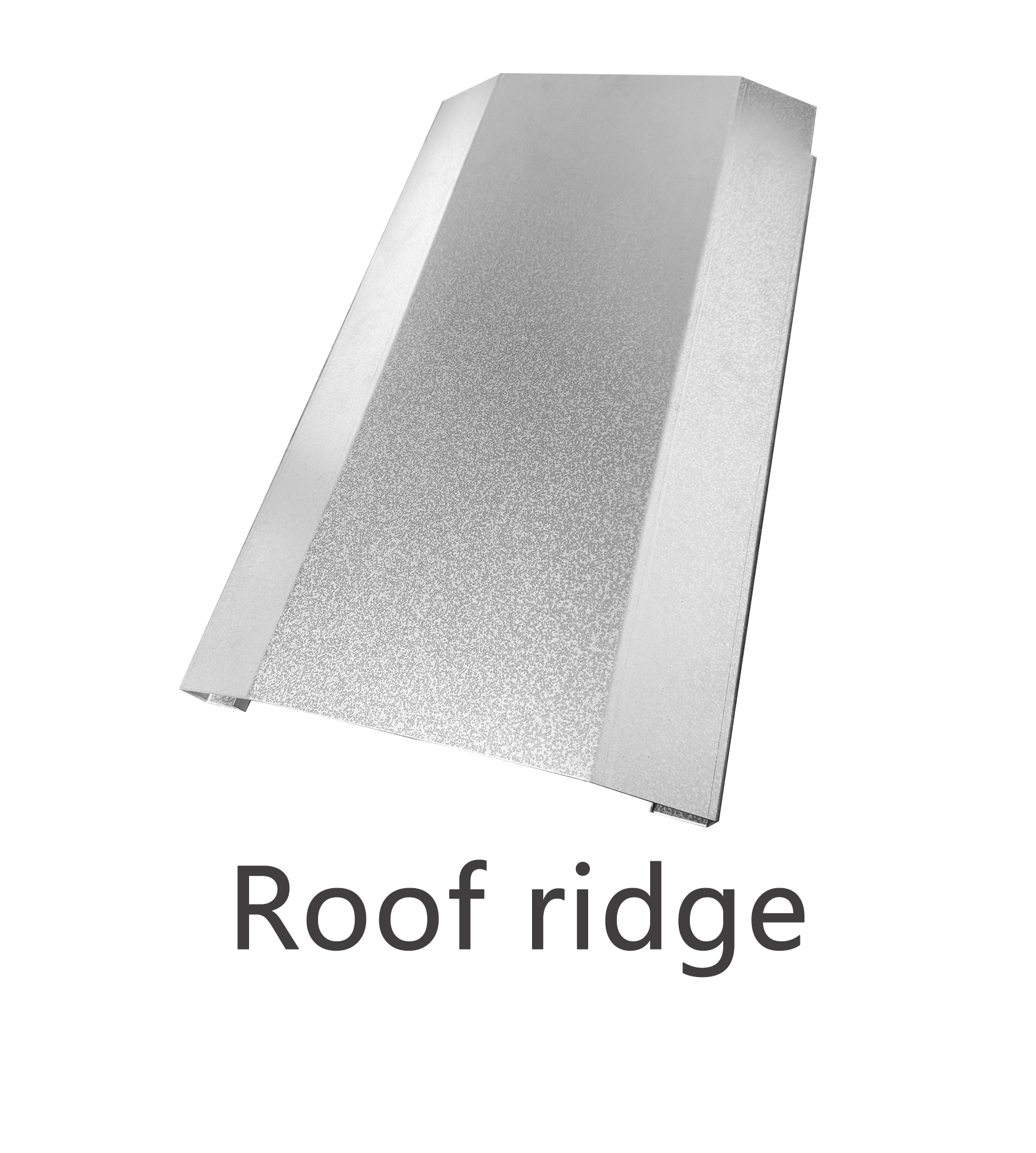

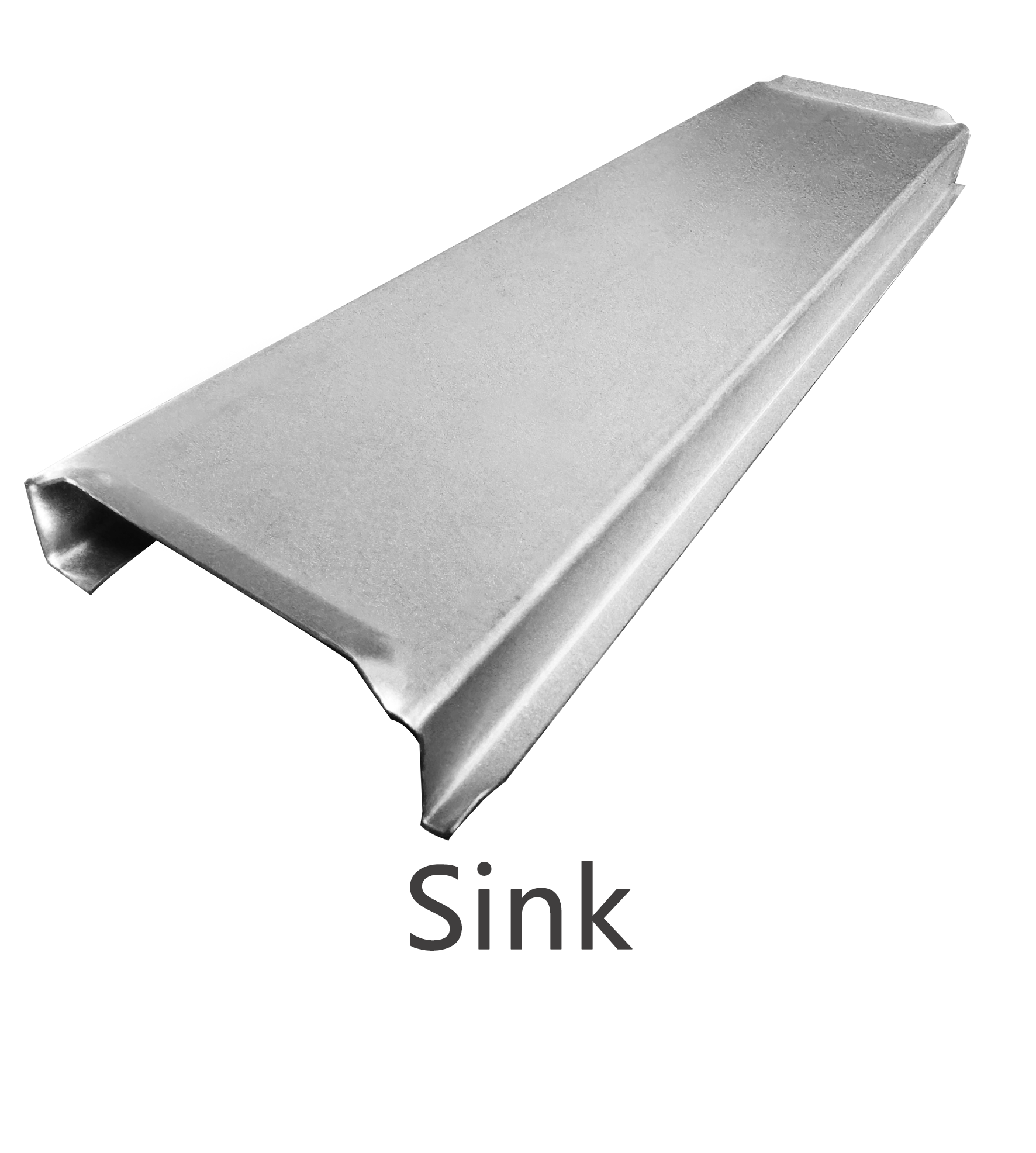

Product Components

BIPV Innovation Highlights

Hole Customization

The M- beams are pre-punched with precisely positioned holes during manufacturing according to the module layout design, enabling on-site installation by simply securing with screws without requiring field measurements. This servo-punching process ensures millimeter-level accuracy, faster installation, enhanced structural reliability, and superior stability compared to traditional field-drilling methods.

Pre-assembled Nuts

M main beam is fixed with nuts at the factory, no need to drill holes and position for on-site construction.

Features

Long Service Life: The completed installation forms a roofing system composed of solar modules paired with galvanized aluminum-magnesium BIPV mounting structures, delivering exceptional corrosion resistance for permanent, maintenance-free performance.

Optimized Roof Utilization: The BIPV system employs a fully pave layout combined with maintenance walkways, increasing roof coverage efficiency by 15-20% compared to conventional PV array arrangements.

Multi-Purpose: BIPV is suitable for old factory remodeling, new factory, concrete roof, carport, sunroom, etc.

Aesthetics: The installed system forms a roofing structure composed of solar modules, delivering neat alignment and enhanced aesthetic appeal.
